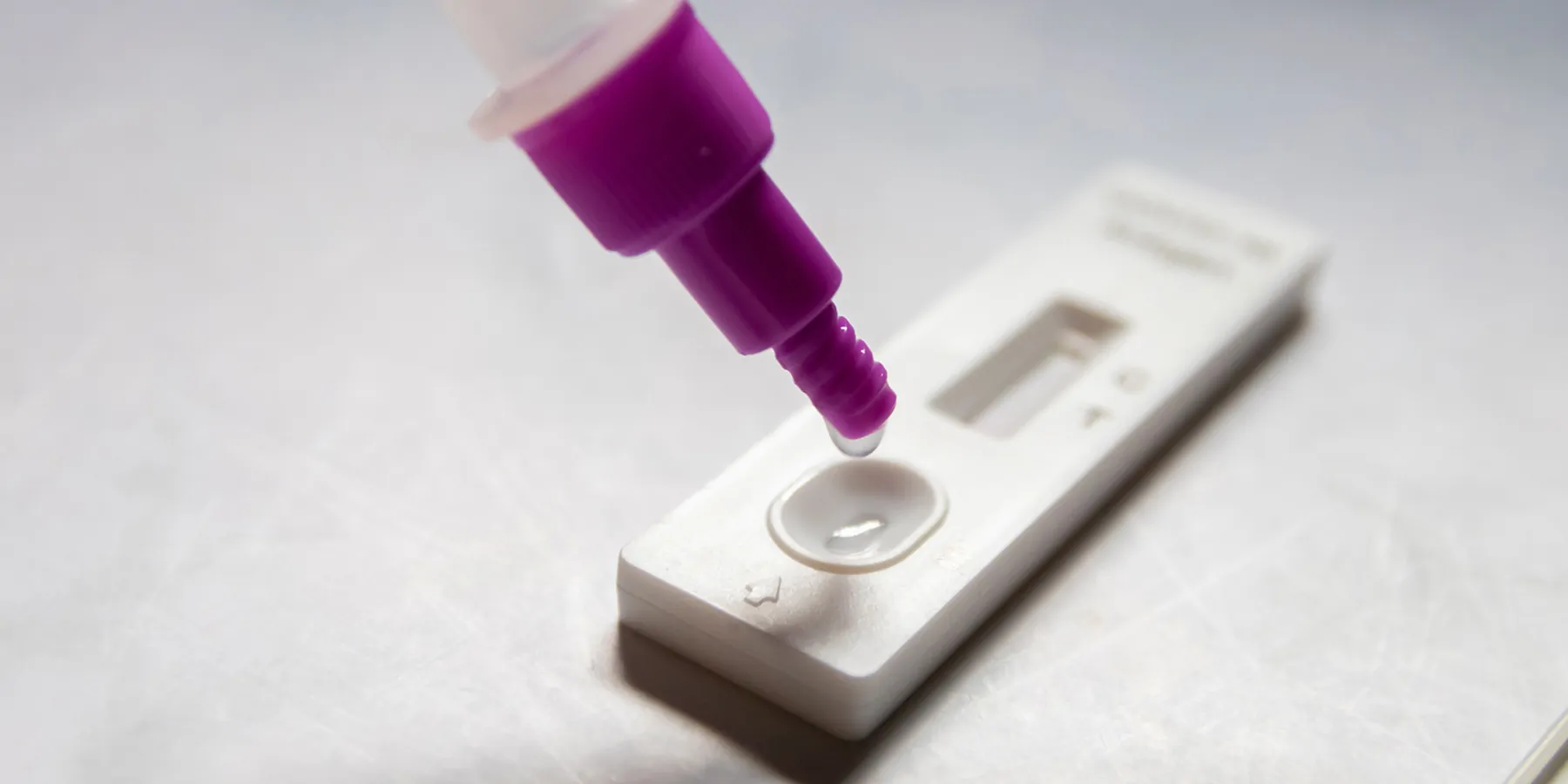

Antigen test sample being dropped onto a medical device for a self, at-home test.
p-LFAs help derive clearer results with smaller samples, enabling one to move from simple qualification to a quantification test with an inexpensive, portable scanner.
iStock, PJjaruwan

New, Highly Sensitive Diagnostic Test for Infectious Diseases

Nanoparticles and lateral flow assay help detect and treat common illnesses at low cost

Washington University in St. Louis
Published:Feb 10, 2023
|4 min read
Register for free to listen to this article
Listen with Speechify

When Srikanth Singamaneni, PhD, and Guy Genin, PhD, both professors of mechanical engineering and materials science at the McKelvey School of Engineering at Washington University in St. Louis (WashU), MO, established a new collaboration with researchers from the Washington University School of Medicine (School of Medicine), St. Louis, MO, in late 2019, they didn’t know the landscape of infectious disease research was about to shift dramatically. The team had one goal in mind: tackle the biggest infectious disease problem facing the world right then.

“Srikanth and I had a vision of a simple, quantitative diagnostic tool, so we connected with infectious disease physicians here at WashU and asked them, ‘What are the most important questions that could be answered if you could get really detailed information cheaply at the point of care?’” said Genin. “Greg Storch told us that one of the most important challenges facing the field of infectious disease is finding a way to figure out quickly if a patient has a bacterial infection and should get antibiotics or has a viral infection, for which antibiotics will not be effective.”

Greg Storch, MD, the Ruth L. Siteman professor of pediatrics at the School of Medicine, was interested in diseases that affect most people regularly—colds, strep throat, or the flu—but which weren’t getting as much research attention as rare diseases. “Even with great advances that have been made in infectious disease diagnostics, there is still a niche for tests that are simple, rapid, and sensitive,” said Storch. “It would be especially powerful if they could provide quantitative information. Tests with these characteristics could be employed in sophisticated laboratories or in the field.”

Drawing on his years of experience in developing nanomaterials for applications in biology and medicine, Singamaneni sought to overcome these limitations in point-of-care diagnostic tests. Singamaneni and his lab developed ultrabright fluorescent nanolabels, called plasmonic-fluors, which could be quickly integrated into a common testing platform, the lateral flow assay (LFA).

Sensitivity and efficacy of plasmonic-fluor-based LFAs (p-LFAs)

p-LFAs improve inexpensive, readily available rapid tests to levels of sensitivity required by physicians for confidence in test results without the need for lab-based confirmation.

According to findings published in Nature Biomedical Engineering, the team’s p-LFAs are 1,000 times more sensitive than conventional LFAs, which show results via a visual color and fluorescence signal on the strip. When analyzed using a fluorescence scanner, p-LFAs are also substantially faster than gold-standard lab tests, returning results in only 20 minutes instead of several hours, with comparable or improved sensitivity. The p-LFAs can detect and quantify concentrations of proteins, enabling them to detect bacterial and viral infections, as well as markers of inflammation that point to other diseases.

“Plasmonic-fluors are composed of metal nanoparticles that serve as antennae to pull in the light and enhance the fluorescence emission of molecular fluorophores, thus making it an ultrabright nanoparticle,” Singamaneni explained. “Our p-LFAs can pick up even very small concentrations of antibodies and antigens, typical markers of infection, and give clinicians clear, quick results without the need for specialized equipment. For quantitative testing beyond the initial screening, the same LFA strip can be scanned with a fluorescence reader, enabling rapid and ultrasensitive colorimetric and fluorometric detection of disease markers with only one test.”

“It’s like turning up the volume on standard color-changing test strips. Instead of getting a faint line indicating only a positive or negative result, the new p-LFAs give clearer results with fewer particles, enabling one to move from simply ‘yes or no?’ to exactly ‘how much?’ with the aid of an inexpensive, portable scanner,” said Jeremiah Morrissey, research professor in anesthesiology, Division of Clinical and Translational Research, School of Medicine, co-author, and long-term collaborator, Singamaneni lab.

This improved testing capability has obvious benefits for a population now all too familiar with the need for quick and reliable test results and the risk of false negatives.

How COVID-19 turned the tables

“When we took on this problem in 2019, we thought our biggest challenge would be getting an adequate number of samples from sick people,” Genin recalled. In a matter of months, COVID-19 would erase that obstacle while introducing a whole host of new challenges and opportunities.

“The pandemic was a big shift for us like it was for everyone,” said Rohit Gupta, PhD, senior scientist at Pfizer and first author of the paper, who then worked on the p-LFA study as a graduate student in Singamaneni’s lab. “We had to move away from our original focus on distinguishing viruses from bacteria, but it turned out to be an opportunity to do practical science with real stakes. We were working with epidemiologists to get samples for testing, with diagnosticians to compare our test to what was available, and with clinicians to gain insights into the real needs for patient care.”

Input from the entire collaboration helped Gupta and Singamaneni refine the design of the p-LFAs, which ultimately achieved 95 percent clinical sensitivity and 100 percent specificity for SARS-CoV-2 antibodies and antigens.

Genin described the results as stunning. “We didn’t know it was going to work so well,” he said. “We knew it would be good, but we didn’t know this $1 test with a $300 readout device would be so much better—10 times better—than the state-of-the-art that we all used during the COVID-19 pandemic.”

Now that they’ve proven p-LFAs can outperform standard lab tests in sensitivity, speed, convenience, and cost for one disease, the team is looking to develop new applications for the technology, including returning to their original goal of identifying bacterial versus viral infections and getting their diagnostic tool into the hands of physicians around the world.

Scope and potential of p-LFAs

The p-LFA technology has been licensed to Auragent Bioscience LLC by Washington University’s Office of Technology Management. Singamaneni and Morrissey are among the co-founders of Auragent, a WashU startup.

“We expect to have p-LFAs commercially available in the next one to two years,” Singamaneni said. “Right now, we’re working on improving our portable scanner technology, which adds a more sensitive, fluorescent reading capability to the test strips in addition to the color change that can be seen with the naked eye. We think we can get that cost down to a point where it’s accessible to rural clinics in the US and abroad, which was one of our original goals.”

“We’re also excited about the potential to detect many more diseases than COVID-19, possibly using a skin patch that can take a painless sample,” Singamaneni added. “This technology has the potential to detect any number of diseases, ranging from STIs to respiratory infections and more, as well as cytokines indicative of inflammation seen in conditions such as rheumatoid arthritis and sepsis.”

- This press release was originally published on the Washington University in St.Louis website
