Better Approaches to Clinical Laboratory Design

It's time to rethink the clinical laboratory from the ground up

Steve Hackman, AIA, LEED AP,Joyce Durham, RN, AIA, EDAC
Published:Jul 09, 2020
|5 min read
Register for free to listen to this article
Listen with Speechify

The clinical laboratory plays a critical role in the delivery of health care, performing an integral function in the diagnostic and clinical decision process. It is a function that is rapidly growing in complexity. Today, there are more than 4,000 types of laboratory tests available; roughly 500 of these tests are ordered on a consistent basis. This trend of increasing complexity and volume will continue as genetic testing and personalized medicine advance. Similarly, technology and infrastructure will continue to impact the functionality and design of the clinical laboratory. Emerging design approaches will improve specimen processing, optimize space allocation, and encourage healthy work environments.

Improving specimen processing

Specimen processing is one of the most critical elements of lab workflow as it relates to turnaround time and critical efficiencies. The rapid reporting of laboratory test results is imperative to quickly and accurately diagnose and treat patients. Over the last decade, labs have steadily progressed from manual to automated testing. Efficiencies are found in point-of-care devices and hand-held technology, outpatient specimen collection stations, courier pick-up and drop-offs, LIMS software, automated analysis including robotic tracks, and pneumatic tube systems.

Automated line at Sutter Health California Pacific Medical Center, Van Ness Campus Hospital, San Francisco, California.
Source: Kyle Jeffers, courtesy of SmithGroup.

Lean methodologies of continuous improvement in processing, quality, and service have been increasingly implemented in numerous clinical lab projects, particularly in recent years as the increase in test volumes and the decrease of technical staff drives the need for higher efficiencies in lab operations and design. An understanding of the supply chain and lab business model is key to planning with Lean methodologies and design principles, as clinical administrators and laboratory planners work together to apply their experience to inform lab operations.

The application of Lean concepts streamlines specimen flow and reduces staffing costs through improved efficiencies. The design of the laboratory can respond to these demands by optimizing space to promote the following:

“Crucial decisions must be made regarding the lab’s physical location in the organization of the hospital, the planning of surrounding areas, and consideration of other critical adjacencies and relationships.”

  • Continuous flow of specimens as opposed to batching
  • Open areas that provide flexibility for assignment and management
  • Inventory systems that allow visual monitoring, reducing consumables
  • Robotic tracks that connect analyzers to minimize hand carrying of specimens
  • Work benches with multiple adaptations to achieve a balanced workload
  • Unobstructed linear flow to increase staff efficiency, especially on night shifts
  • Adequate equipment space with access for servicing and proper air flows

Optimizing space allocation

While the optimization of specimen processing is the central focus within most clinical laboratories, crucial decisions must be made regarding the lab’s physical location in the organization of the hospital, the planning of surrounding areas, and consideration of other critical adjacencies and relationships. Space is expensive and a precious commodity in the acute care setting. Therefore, many organizations are rethinking how and where to locate laboratory space, which may include these considerations:

  • Core labs: Traditionally located on-site within the hospital, ‘core’ reference labs have proximity to patients and pathologists, but also occupy premium space and expensive real estate.
  • Rapid response labs: Being located on-site in the acute care hospital supports the need for tests requiring immediate or rapid (four-hour) turnaround capacity.
  • System wide reference labs: These labs are located in a centralized location off-site to process longer, less time-sensitive testing. An emerging trend of co-locating facilities for clinical labs, diagnostics, and research has revolutionized many organizations and takes advantage of current technologies, consolidation of testing services, and optimization of high-volume throughput.

Each of these considerations for the clinical lab location is complex and affected by existing space constraints, high construction costs, real estate costs, and perceptions about the appropriate proximity of the core lab.

Open laboratory at Loyola Medical Center (CTRB), Maywood, Illinois
Source: Dave Burk, courtesy of SmithGroup.

Increased automation may result in higher sample volume, and consequently, greater demand on the facility and staff. Supply needs may increase along with the need for controlled-temperature specimen storage, pneumatic tube systems, and the operational management of materials.

From the accessioning of samples to the final delivery of test results, critical pathways can be enhanced by proper laboratory planning to allow for improvements in time-sensitive workflows, advances in instrumentation, and changes to the core scientific basis for various testing methodologies. To accommodate these operational needs, the physical environment of the clinical laboratory should be designed from the inside-out as a flexible facility with the following characteristics:

  • Open labs with ceiling-mounted plug-and-play services
  • Modular utilities distribution
  • Movable and reconfigurable casework
  • Uniformly located plumbing, including sinks and floor drains
  • Ubiquitous data to support digital technologies
  • Assigned R&D/growth space for emerging scientific needs

In order to create the flexibility needed in today’s clinical laboratories, design principles such as open planning and modular design have been successfully implemented. An open floor plan enhances the laboratory’s ability to expand and modify workflows and functionalities over time. Open labs support an increase in test volumes, allow an easier reconfiguration of space, and support technological advances in instrumentation.

Modular design enables future flexibility while establishing uniformity, consistency, and familiarity. The clinical laboratory’s unique workflows and instrument needs dictate a specialized approach, with multidirectional and often diverse module sizes that prevent overcrowding and congestion in the lab while improving safety, performance, and efficiency.

Encouraging healthy work environments

“The clinical laboratory’s unique workflows and instrument needs dictate a specialized approach, with multi-directional and often diverse module sizes that prevent overcrowding and congestion in the lab while improving safety, performance, and efficiency.”

Existing laboratory space has historically neglected the human and intellectual needs of the technicians, scientists, and staff in favor of the needs of the equipment. Large, windowless laboratories with few or no amenities to support collegial interaction have characterized these facilities. The design of new or renovated clinical laboratories can bring fresh thinking to improve work life and can provide stimulating environments that encourage interaction.

Creating environments that enhance the quality of life and wellness of lab users is one of the highest priorities in designing clinical laboratories today. While traditional ergonomic considerations remain critically important, the following more holistic strategies can enhance the workplace:

  • Automation decreases repetitive motion disorders and increases staff efficiency

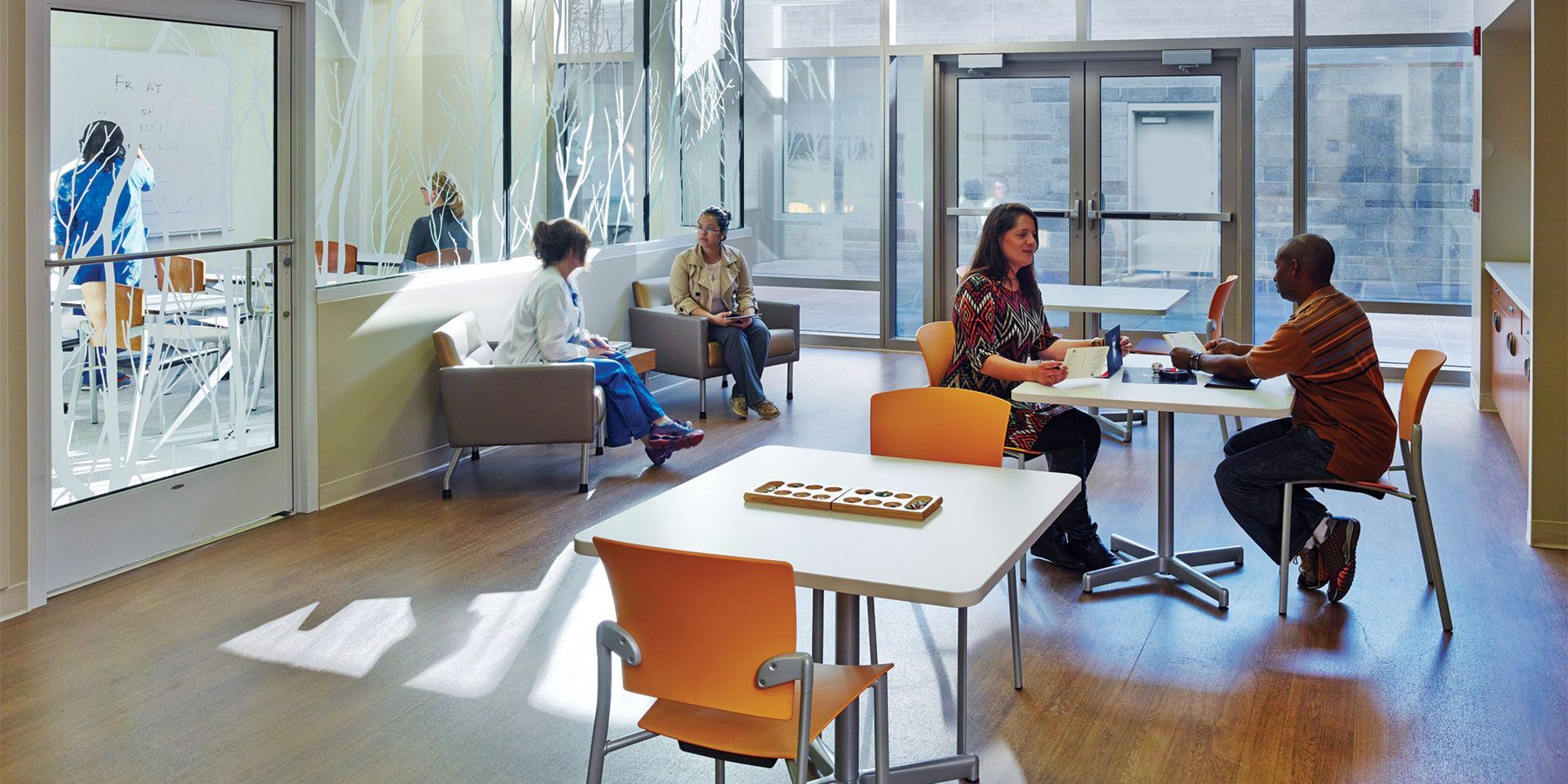

  • Shared interaction spaces promote teamwork, trust, and collaboration
  • Sound-attenuation materials reduce noise levels
  • Natural light, color, and artwork create comfortable, human-centric environments
  • Adjustable light levels accommodate a range of tasks
  • Proper safety/containment strategies reduce exposure to hazards
  • Adjustable workstations accommodate a range of user preferences
  • Staff break rooms with views enhance collaboration

In addition to staff workflow and safe protocols, the facility’s mechanical, electrical, and plumbing systems provide a high level of security and comfort for the occupants and for the personnel who operate and maintain the systems. Specific goals for the safe integration of lab systems for clinical testing and research include:

  • Flexibility of systems reconfiguration
  • Control of lab exhaust and room pressurization
  • Energy conservation measures • System redundancy
  • System maintenance and life cycle

Safe practices in the laboratory rely on the appropriate design and application of industry standards and regulations. Best practices are drawn from technical experience, industry participation, and reference to documents such as the CLSI Laboratory Design: Approved Guideline, the CDC-NIH Biosafety in Microbiological and Biomedical Laboratories, and the SEFA Recommended Practices for Scientific Equipment, Laboratory Casework, and Fume Hoods.

An understanding of how a clinical laboratory functions and operates is critical to planning and designing an optimal laboratory environment. Among the key clinical lab design principles are workflow efficiency for improved specimen processing; flexible and modular space allocation to accommodate robotic instrumentation; and safe, people-centric design to promote healthy work environments. With the myriad of issues and options in the workplace, the clinical laboratory planner can facilitate a discussion of what’s ailing your laboratory in order to find optimal solutions that fit your specific needs.
